Transform common file formats to S1000D compliant CGM & SVG files
VizEx Transform is a one-of-a-kind application that facilitates the conversion of various graphical data formats into S1000D compliant CGM and SVG files through an easy-to-use interface. The application also supports the automatic addition of hotspot information to both CGM and SVG graphics during the conversion process. This is achieved via a batch process, which efficiently saves both time and money.
Transform Image files
Common image formats such JPEG, PNG, TIFF and BMP are transformed into the CGM
and SVG formats.
CGM and SVG are commonly thought of as a vector formats, however, both include the support
for embedded raster files.
- Supports Raster to Raster CGM and SVG conversion
- Options for file compressions, image quality, grayscale, size (pixels, inches, metric)
- Advanced features include color swapping, convert to monochrome
Transform DWG and DXF files
Transform CAD files from the engineering department and successfully reuse of existing
data without the loss of graphics quality.
- Supports "Model" and "Paper" space options
- Pen weight values are supported and mapped to the CGM file.
- Options for arcs, ellipses, polylines, and scaling control.
- Control individual layers by turning off selected layers. For example turn off title block, extract desired text for specific languages.
- Convert colors to monochrome
Transform PDF files
This graphics transformation eliminates the requirement to re-author or redraw existing
illustrations in the PDF format. The same technology can also be used to convert
from popular graphics software not providing output to CGM and SVG, but do
output in PDF or EPS.
- Convert a multiple page PDF document into separate CGM files.
- Choose individual pages of a PDF document to be converted.
- Scale line widths
Automatically create intelligent CGM and SVG graphics
Larson’s VizEx Transform automates the creation of hotspot information in CGM
and SVG files
during the conversion process.

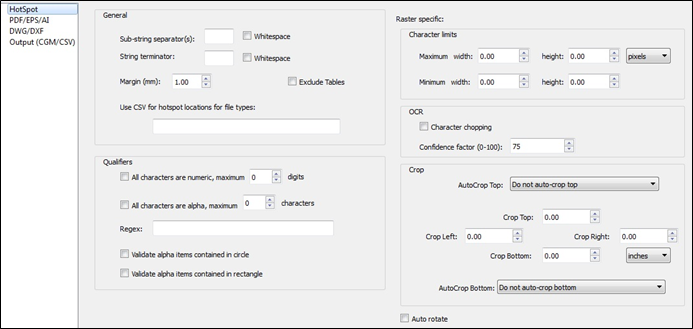

- Identify text based on characteristics including minimum and maximum digits, minimum and maximum height. For more powerful text filtering specify characteristics with regular expression (regex).
- Option to output hotspot information to a file in CSV format so you can add user application, which refer to databases, or add screen tip text and URL links.
- Raster option allows you to take TIFF, JPEG, PNG, and CALS raster files and automatically recognize callouts and then convert them to CGM Version 4 and SVG with hotspots. "Smart raster text recognition" algorithm that separates text from graphics so the text strings can be OCR identified for hotspotting.
Technical Specifications
Platforms: Windows XP, 7, 8, 10
Input: CGM V1-V3, BMP, CALS-G4, EMF, GIF, JPEG, PNG, TIFF
Optional Input: SVG, DWG, DXF, PDF, AI, EPS
Output: CGM V4, WebCGM,
S1000D 6.0 SVG, PNG
